| Model | TA-23 |
| Voltage of motor | 12V DC, 24V DC, or 36V DC |
| Maximum load | 10,000N in push |
| Maximum load | 4,000N in pull |
| Maximum speed | 39.0mm/s |

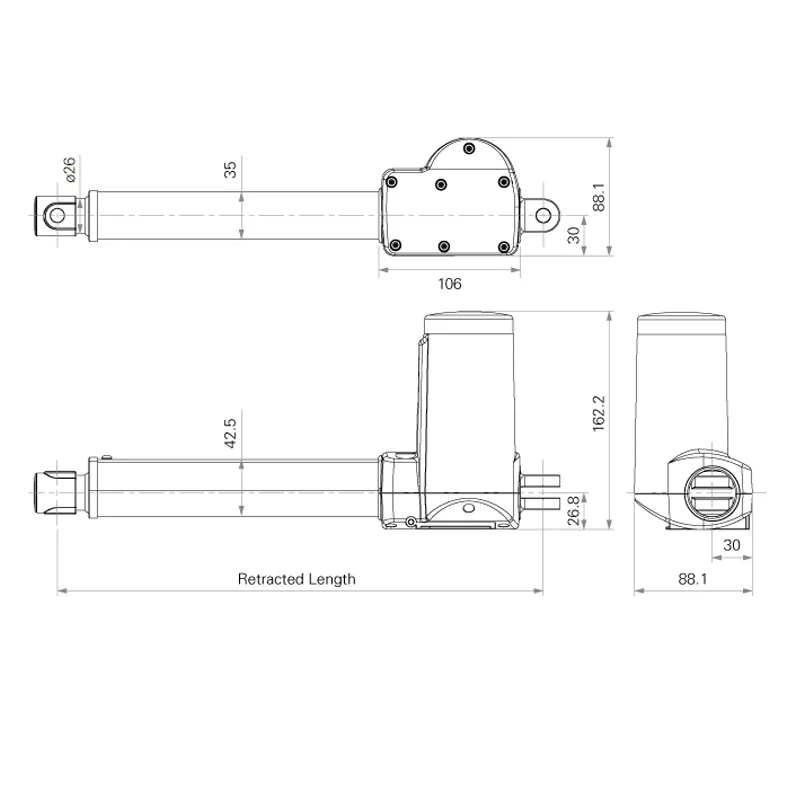

| Minimum installation dimension | stroke+163mm |
| Color | grey/black |
| Certificate | IEC60601-1,ES60601-1,CB, and RoHS |
| Protection class | IP66 |
| Option | freewheeling push only, safety nut,Hall/Reed sensor(s) |

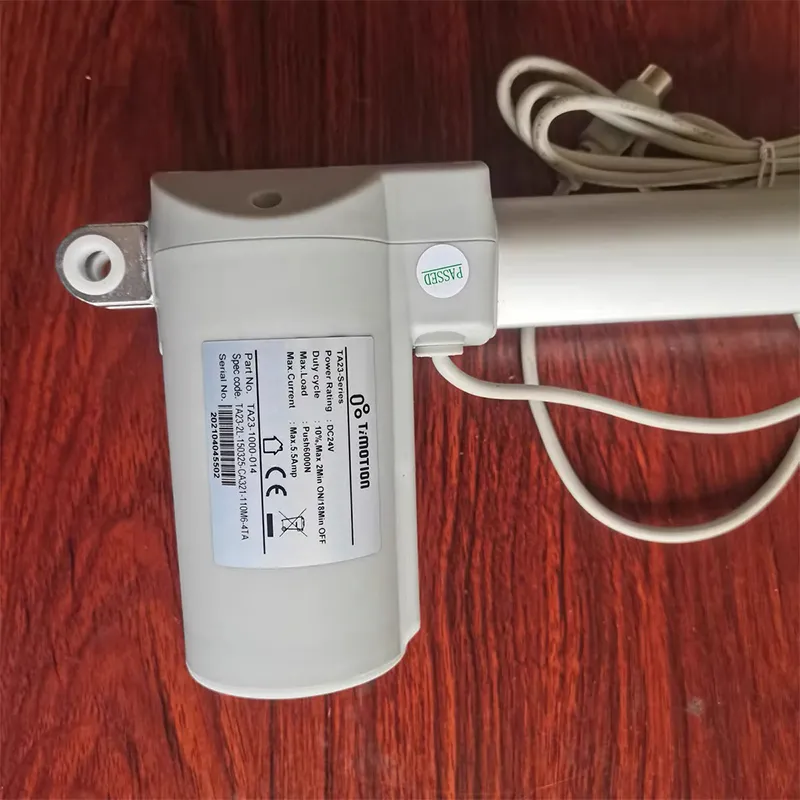

The TA23 is a dental chair motor with an extremely compact installation space, capable of handling large loads and high speeds. The control box can be directly mounted on the TA23. Its waterproof rating reaches up to IP66W. The TA23 can be paired with Hall effect sensors.
Our website does not list all products. Please contact us to get our catalog and price list.
